MINIX NUC150 Intel N150 Mini PC
If you have B2B order needs, please contact us.
Compact Design
The NUC150 Mini PC boasts a sleek and compact design, with machine dimensions of 117*111*36mm (excluding foot pads). This makes it an ideal choice for users seeking a powerful yet space-saving computing solution.The NUC150 Mini PC boasts a sleek and compact design, with machine dimensions of 117*111*36mm (excluding foot pads). This makes it an ideal choice for users seeking a powerful yet space-saving computing solution.
Powerful Processor Options
Equipped with either an Intel® Processor N150 (4 Core, 6M Cache, 4 Threads, 3.60 GHz) or an Intel® Core™ 3 Processor N355 (8 Core, 6M Cache, 8 Threads, 3.90 GHz), the NUC150 guarantees smooth and efficient multitasking capabilities, suitable for various demanding applications.
Ample Storage and Memory
The NUC150 comes with 16GB of DDR5-4800MHz memory and a 512GB M.2 2280 PCIe 3.0×4 NVMe SSD, ensuring fast boot times and quick data access. Additionally, it offers expansion options via one M.2 2280 PCIe 3.0×2 NVMe SSD slot and one M.2 2242 PCIe 3.0x1 NVMe SSD slot (compatible with SATA 3.0 SSD), accommodating up to 4TB of additional storage.
Versatile Connectivity Options
The NUC150 features a comprehensive array of connectivity options, including two HDMI 2.1 TMDS ports supporting 4K@60Hz, multiple USB ports (including USB-C with DisplayPort 1.4 and power delivery capabilities), a 2.5G Ethernet port, and an M.2 2230 Intel® 802.11AX201 Dual Band Wi-Fi 6 card with BT5.2. These features cater to a wide range of peripheral and networking needs.
Operating System Flexibility
The NUC150 ships with Windows 11 Pro, offering a user-friendly and powerful operating system. It also supports multiple languages, making it accessible to users worldwide.
Comprehensive Certification
The NUC150 has obtained various certifications, including FCC, CE, UKCA, ROHS, WEEE, and PSE, ensuring compliance with global safety and environmental standards. Its Wi-Fi module, the AX201NGW, has also received numerous certifications from regulatory bodies around the world, guaranteeing reliable and secure wireless connectivity.
Specifications
Brand: MINIX
Type: Intel® Twin Lake MINI PC
Model: NUC150
Color: Black
Material: Plastic
Processor: Intel® Processor N150 (4 Cores, 6M Cache, 4 Threads, 3.60GHz)
Intel® Core™ 3 Processor N355 (8 Core, 6M Cache, 8 Threads, 3.90GHz)
GPU: Intel® Graphics
Operating System: Windows 11 Pro (Support multi-language)
Chipset: SOC
BIOS: AMI UEFI BIOS
Memory: 16GB DDR5-4800MHz
Storage: 512GB M.2 2280 PCIe 3.0 x 4 NVMe SSD
Storage Slot: 1 x M.2 2280 PCIe 3.0 x 2 NVMe SSD Slot (Up to 4TB, not included)
SSD Expansion:1 x M.2 2242 PCIe 3.0 x 1 NVMe SSD Slot (Compatible with SATA 3.0 SSD) (Up to 4TB, not included)
Lan IC: 1 x 8125GB(8111K)
Interface: 1 x RJ-45 2.5G Ethernet (1G/2.5G)
Wi-Fi: Wi-Fi 6 Dual Band (2.4GHz/5GHz)
Bluetooth: BT5.2
2 x HDMI 2.1 TMDS (4K@60Hz)
1 x Type-C (DP/PD/USB-C 3.2) (4K@60Hz)
3.5mm Audio Output Combo Jack
3 x USB-A 3.2 Gen2
1 x USB-A 2.0
1 x USB-C 3.2 Gen2 (Data)
1 x USB-C 3.2 Gen2 (DP1.4 4K@60Hz, PD Input 65W, Output 15W, Data)
19V 3.42A DC Power Adapter

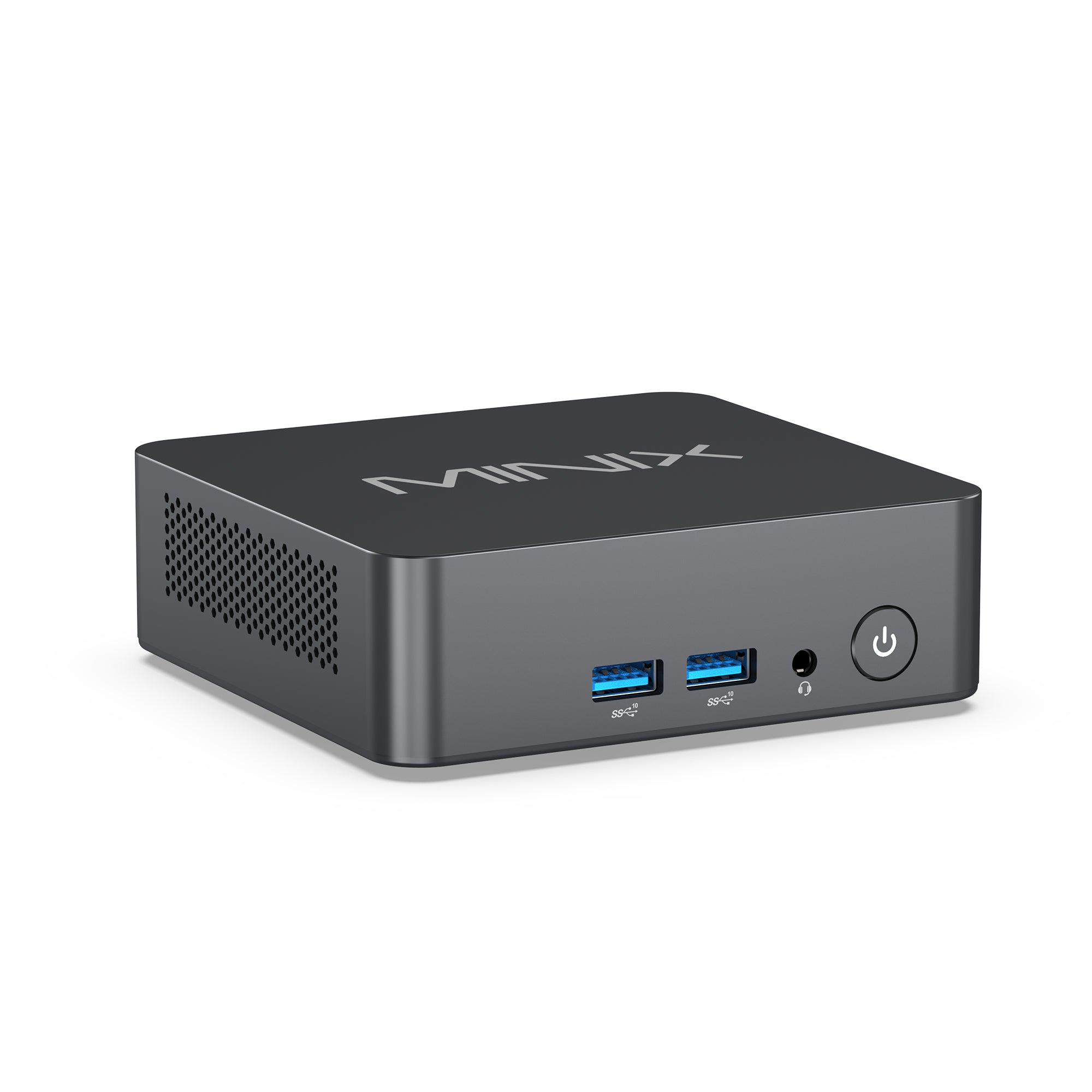

Front Panel:
1 x Power Button/LED
1 x 3.5mm Combo Audio Jack
2 x USB-A 3.2 Gen2

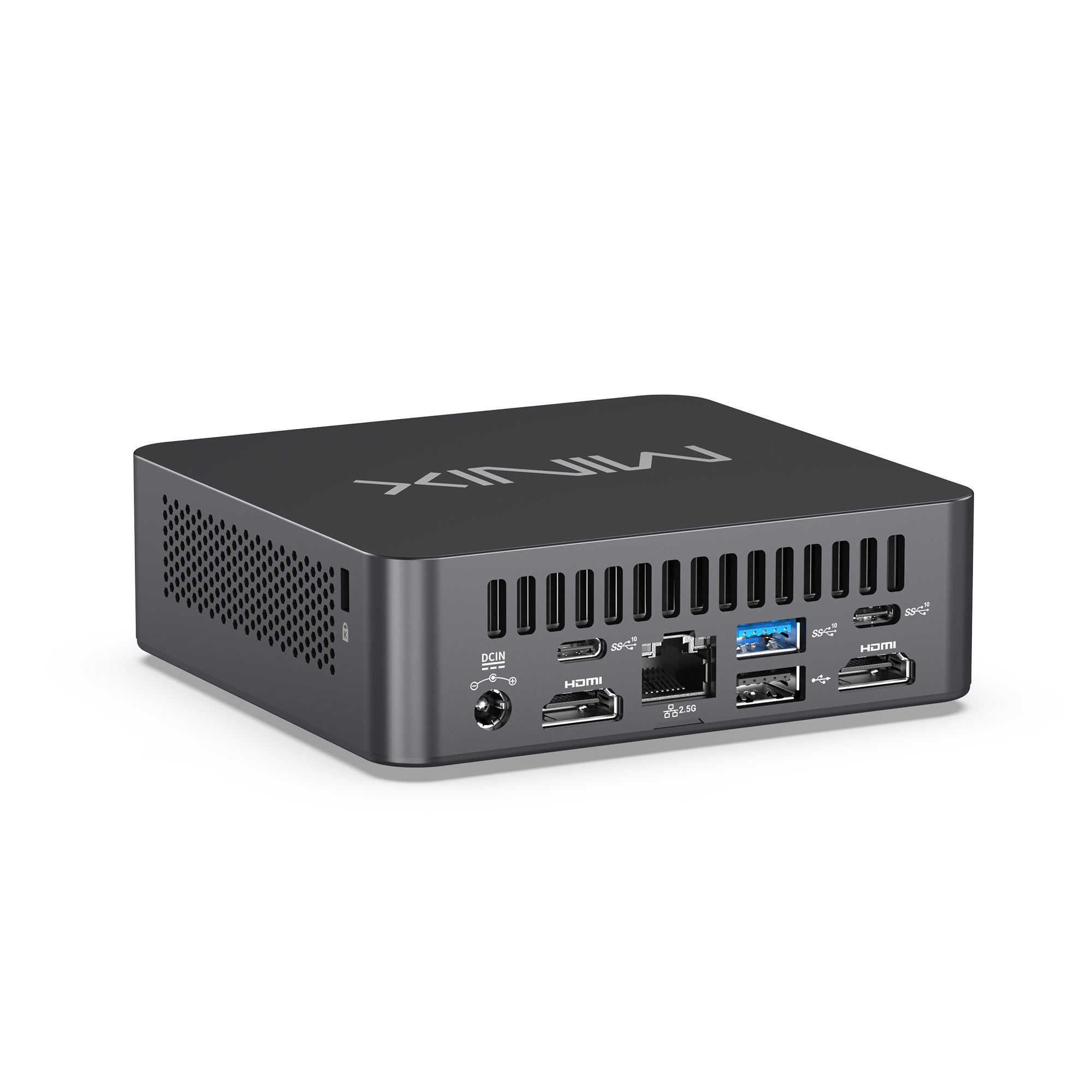

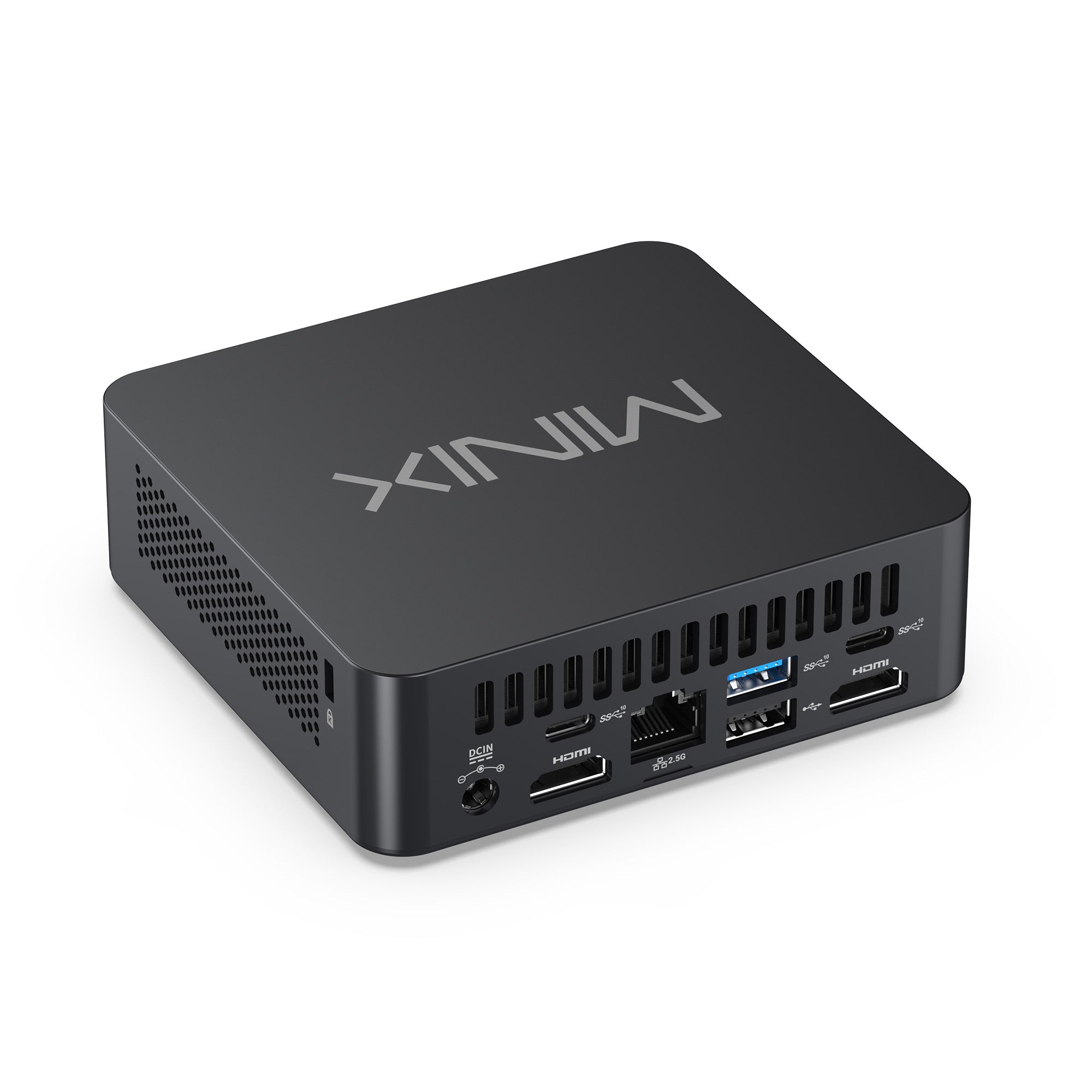

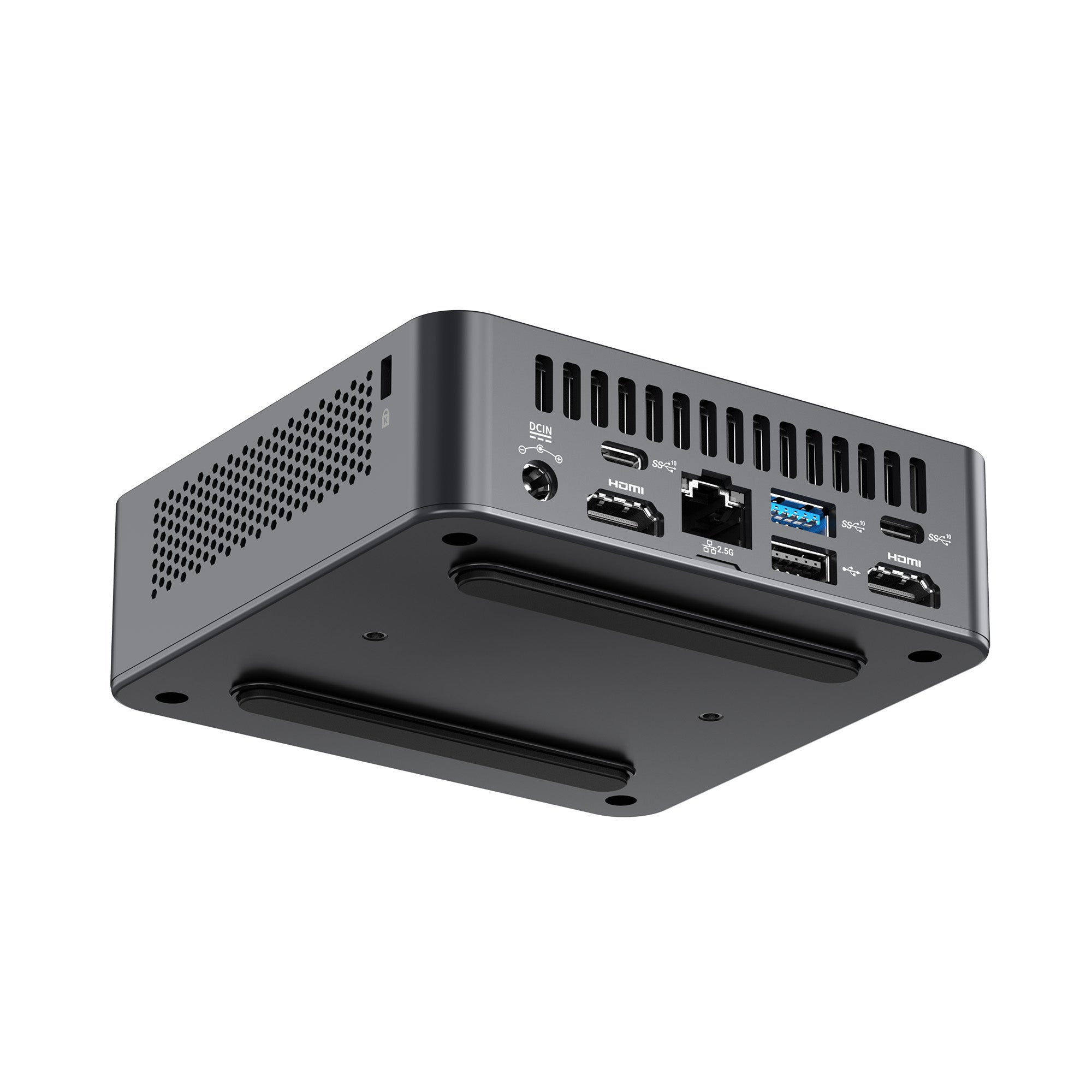

Rear Panel:
1 x RJ-45 2.5G Ethernet
1 x USB-A 3.2 Gen2
1 x USB-A 2.0
2 x HDMI 2.1 TMDS (4K@60Hz) (Support CEC)
1 x USB-C 3.2 Gen2 (Data)
1 x USB-C 3.2 Gen2 (DP1.4 4K@60Hz, PD Input 65W, Output 15W, Data)
1 x Input AC 100~240V, Output DC 19V 3.42A 65W Max

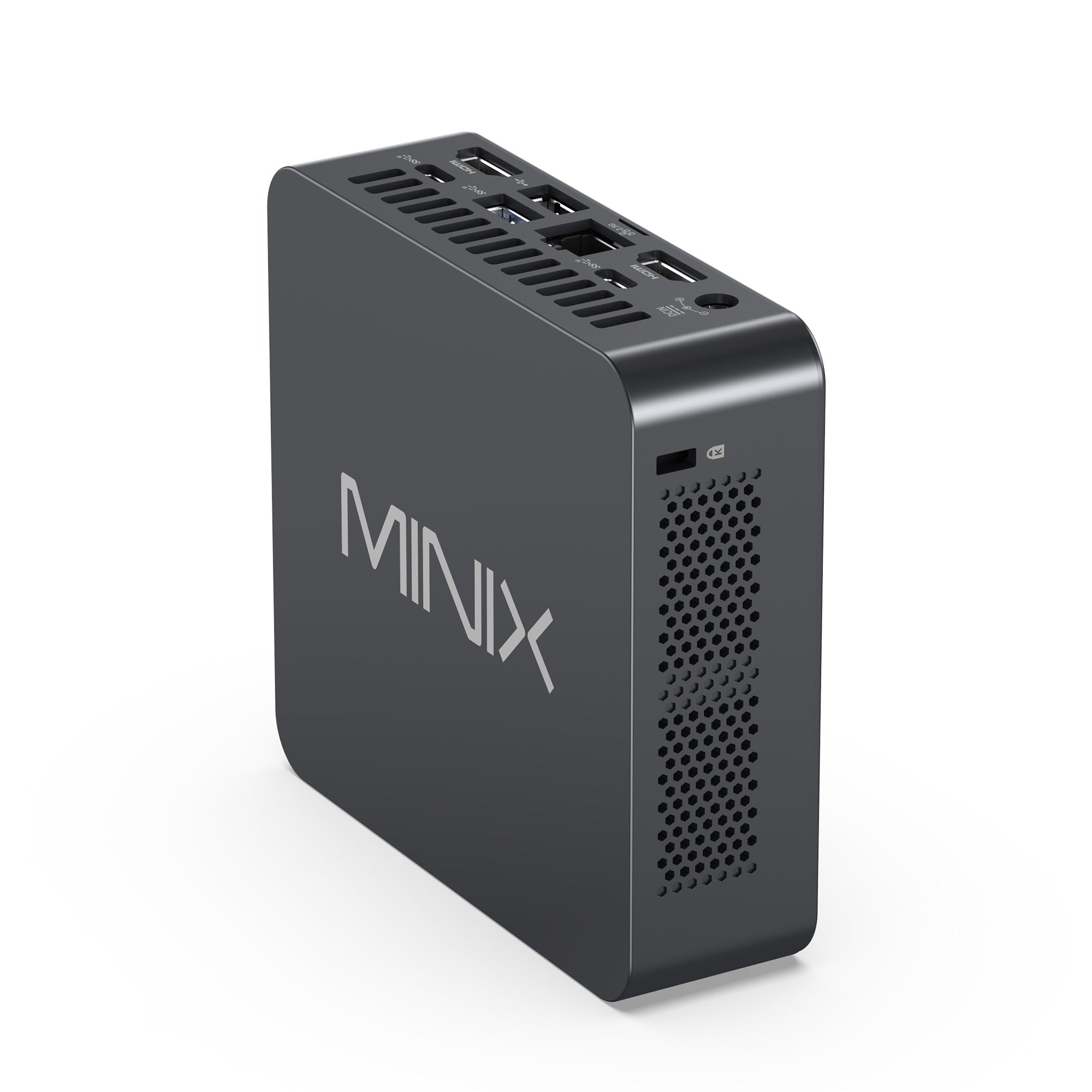

Right Panel:
1 x Kensington Lock
Operating Temperature:-5~45℃
Storage Temperature:-20~70℃
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-95% non-condensing
Product Size (H×W×D): 117×111×36mm
1 x Mini PC
1 x 19V 3.42A Power Adapter
1 x HDMI Cable
1 x VESA Mount
1 x User Manual
